M-Star Post Overview

These are the main components of the M-Star Post GUI interface

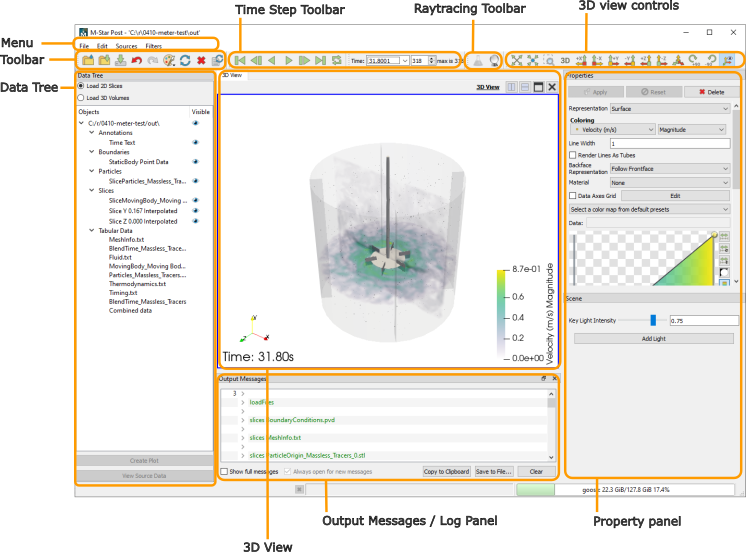

../../../_images/post-gui-window-described.png

  • Menu: The menu is for general interaction with the program

  • Toolbar: General data loading and other common controls

  • Time Step Toolbar: Controls to change the displayed time Step

  • Raytracing Toolbar: Enable raytraced rendering algorithms for photo realistic rendering

  • 3D View Controls: Control the camera position for the 3D View

  • Data Tree: Listing of all data loaded into the program

  • 3D View: Visual representation of data

  • Output Messages: Messages and logged information

  • Property panel: Select an item in the Data Tree and you can change its parameters on this window

  • Troubleshooting M-Star Post start up: Common causes and troubleshooting methods to resolve M-Star Post start up issues
