Diagnostics¶
Introduction¶
The Diagnostics window reports the position, orientation, and moments of inertia associated with child geometry. This information is useful for characterizing the instantaneous state orientation and bounding box of a geometry. For imported geometry, it records the original location of a file. Moments of inertia are also calculated, as may be necessary when modeling driven motion.
Access¶

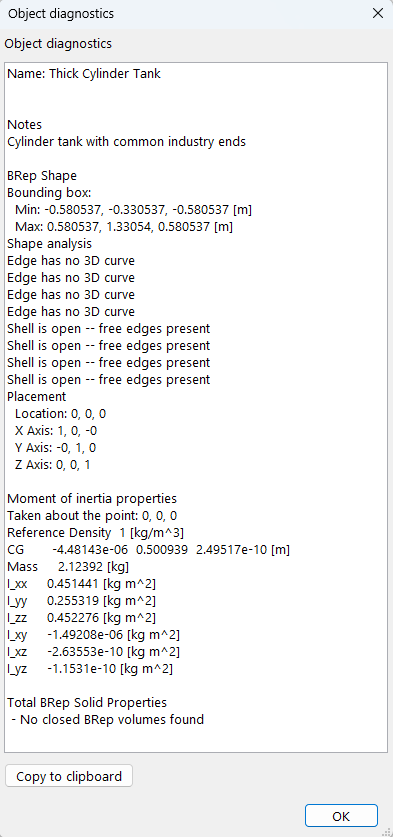

When you select Diagnostics on any child geometry context-specific toolbar, the below window will open.
Diagnostics Window¶

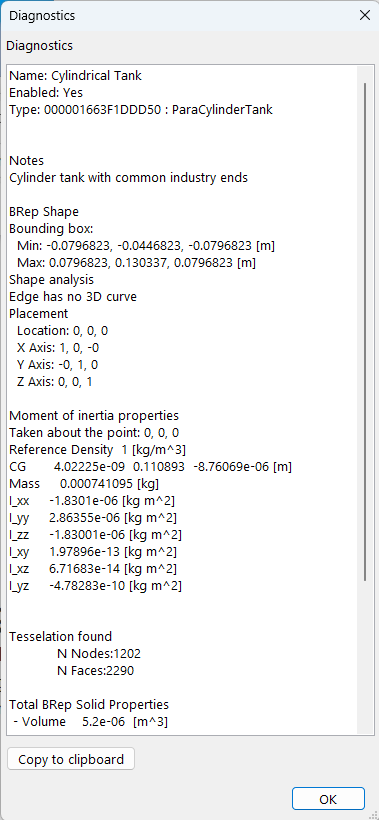

In the following image, the example form shows the properties that the diagnostics form reports, including the object name, notes, BRep shape bounding box, shape analysis placement, moment of inertia properties, etc.
Location¶
The Diagnostics function is found on the following context-specific toolbars (accessed through the Create menu):
All Children Geometry
