flow Preview Flow

Introduction

The Preview Flow window shows a preview of what the fluid will do at an inlet or outlet.

Access

When you select Preview Flow on the Static Inlet/Outlet context-specific toolbar, the window below will launch.

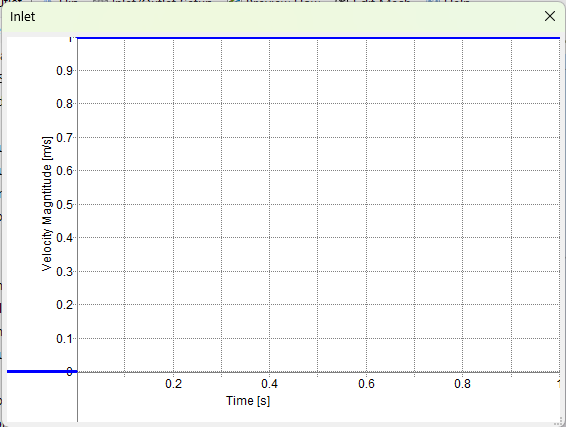

Preview Flow Window

../../../_images/preview-flow-window.png

Location

Preview Flow is found on the following context-specific toolbar:

inlet Static Inlet/Outlet
