Overview

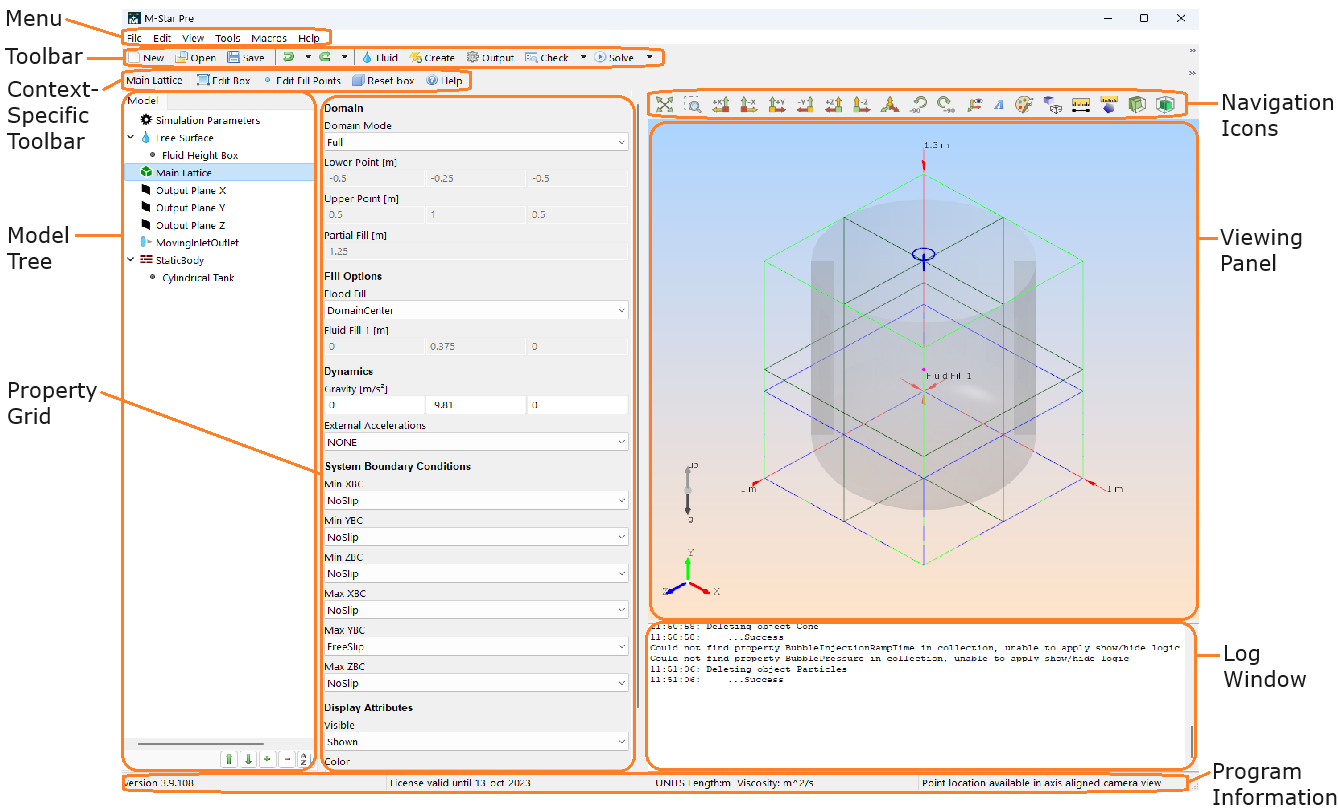

These are the main components of the M-Star Pre GUI interface.

../../_images/pre-overview.png

  • Menu: The menu is for general interaction with the program.

  • Toolbar: In the toolbar you interact with your model, make changes, create additional components, and run the solver.

  • Context-Specific Toolbar: In the dynamic context-specific toolbar, the functions change according to your selections in the model tree.

  • Child Geometry Toolbars: These are the limited selections for the various child geometry context-specific toolbars.

  • Model Tree: The model tree is where you select the basic components for your model, including the three required components: simulation parameters, fluid configuration, and main lattice.

  • Property Grid: The property grid lists all the inputs for each component selected from the model tree.

  • Navigation Icons: With the navigation icons, you can change the style and toggle annotations on and off.

  • Viewing Panel: The viewing panel shows your 3D model geometry and other defined components.

  • Log Window: The log window displays simulation activity, user messages, and errors encountered during model setup.

  • Program Information: The program information is displayed for your convenience on the bar at the bottom of the page.

  • GUI Command Line Arguments: This page contains reference documentation for the command line parameters of the GUI executable.
