Add Pipe Form

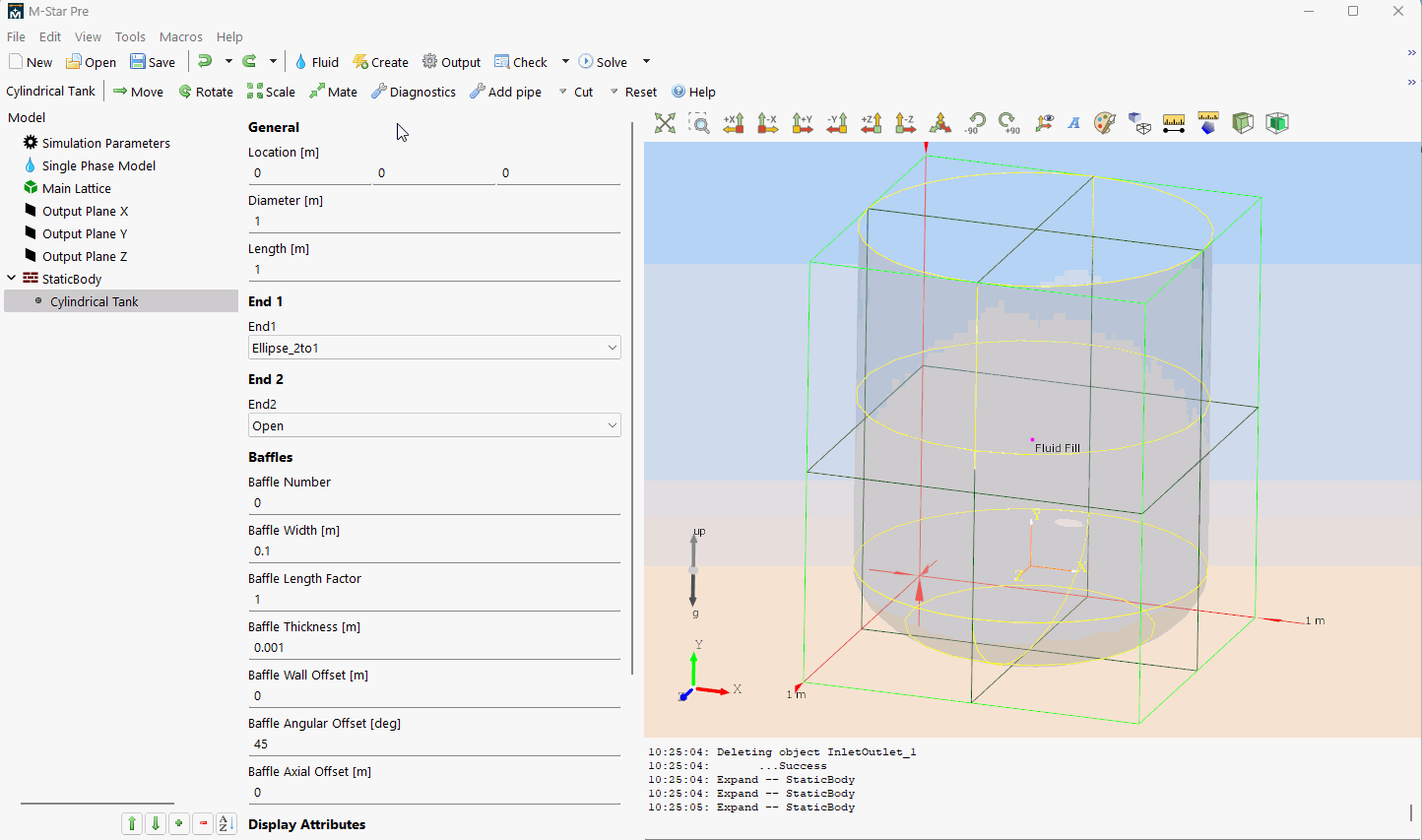

The Add Pipe form is used to add pipes to parametric tank child geometry. It is only available for parametric tank geometry.

The diameter and length can be specified on the form. The location can be modified by specifying coordinates or by clicking the mouse. Highlight the Pipe child geometry to provide the option to modify the Mount type: through wall or flush. Highlight the InletOutlet to reveal the accompanying context-specific toolbar which allows you to Flip the inlet/outlet flow.

../../../_images/add-pipe.gif

Add Pipe Form Text

Name

This is the name of the pipe object.

Diameter

This is the diameter of the pipe.

Length

This is the length of the pipe extending into the domain.

Location

This the position of the pipe in the domain.

Location

The Add Pipe form is found on the following context-specific toolbars (accessed through the Create menu):

  • Static Body/Parametric/Tank
