Particle Sink¶

All particles that enter the geometry are removed from the system.

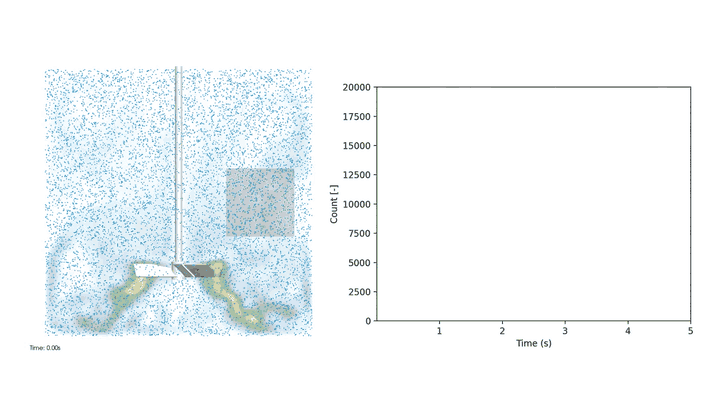

In this model, the sink is activated at 1 second. From that time on, particles that enter the child geometry will be removed from the system.

Download Sample File: Sink

Property Grid¶

Start Time

s | The time at which particles will start to be removed within the injection geometry.

Stop Time Option

s | The options for when particles will stop being removed within the injection geometry.

End of Simulation

Particles will be removed within the injection geometry until the end of the simulation.

Specified

The user inputs a specified time.

Stop Time: s | The time at which particles will stop being removed within the injection geometry.
