Create Patch Form

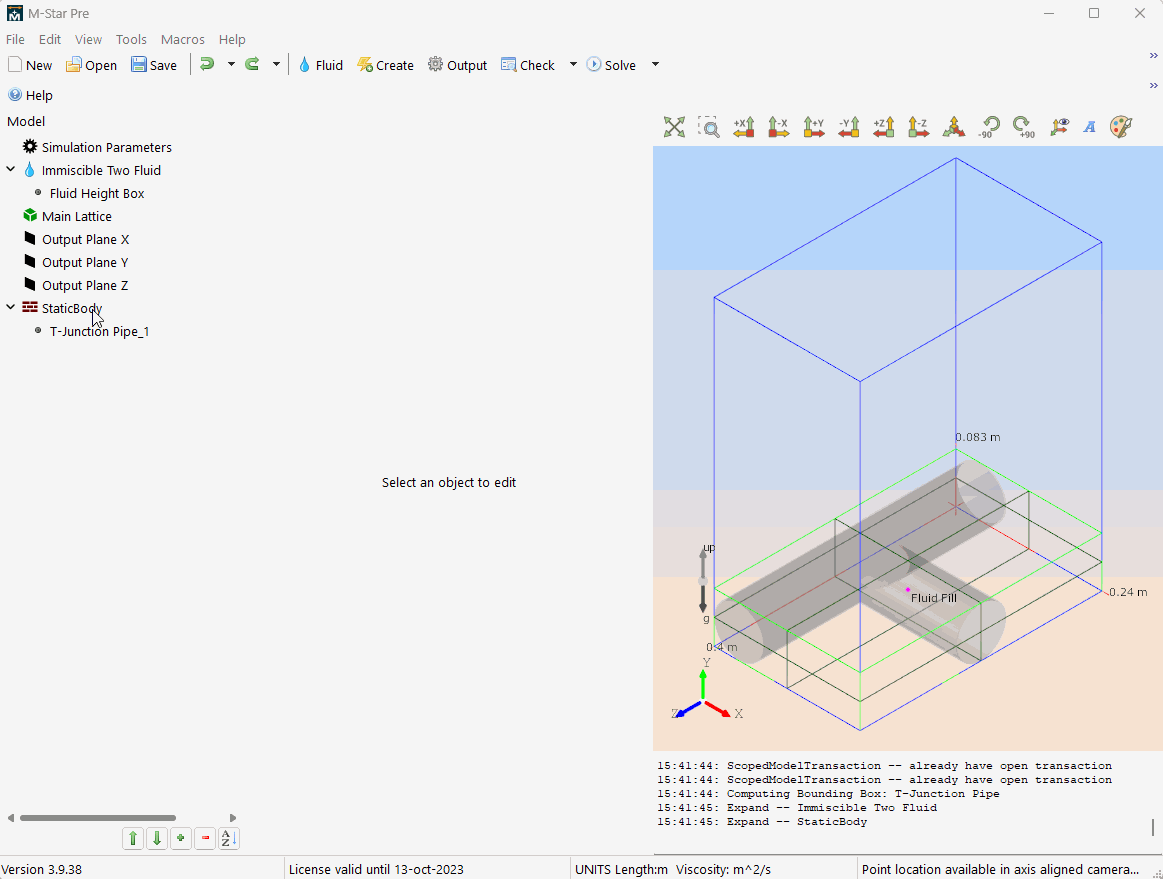

The Create Patch form can be used to patch holes or openings inside static body geometry. This operation is particularly useful for making CAD geometry water-tight for the floodfill operation. This only works on flat surfaces. For more complex holes, we recommend adding more child geometry to the static body family.

../../../_images/create-patch.gif

Location

The Create Patch form is found on the following context-specific toolbars (accessed through the Create menu):

  • Static Body
